Description

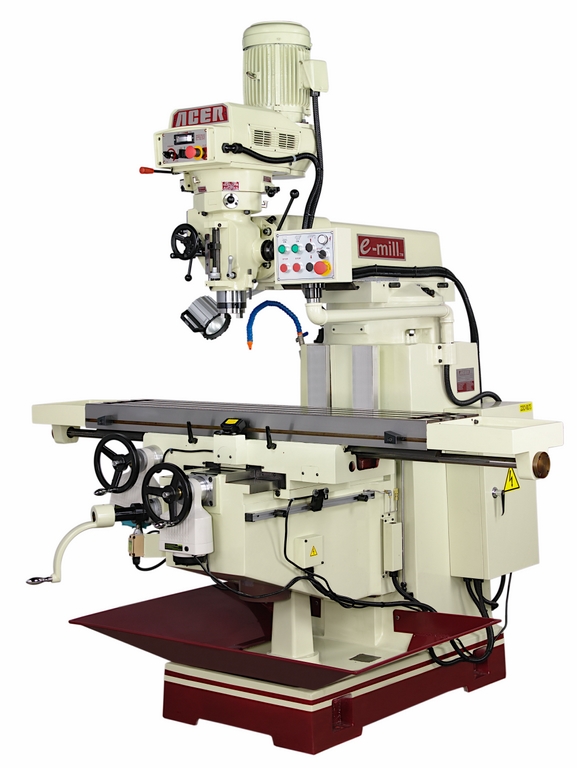

Acer E-Mill 59″ x 11 4/5″ Vertical Milling Machine, 6VK
Inventory # 8763
Model: 6VK
具体的ations:
Table:
工作表：59“ x 11 4/5”
纵向旅行手册：47 1/4英寸
交叉旅行：15英寸
膝盖的垂直旅行：19 3/4英寸
Longitudinal Power Feed: 1″ to 29″ /Min.
Longitudinal Rapid Traverse: 94 1/2″ /Min.
Ram Travel: 16 8/9″
Ram Swivel: 360°
Spindle:
主轴驱动：变量
主轴速度：50至3,750 rpm
主轴锥度：N.S.T。＃40
Spindle Nose to Table Surface Distance: 3 2/7″ to 19 2/5″
Quill:
动力羽毛笔：0.0015英寸，0.003英寸，0.006英寸
Table Power Feed Motor: 2 HP
Knee Vertical Feed Motor: 2 HP
Coolant Pump: 1/8 HP
头：
头从左到右移动：90°
Main Motor: 5 HP
标准的特点:
5 HP spindle inverter motor with frequency inverter drive
0 to 4,500 RPM infinite spindle speed
Large digital spindle RPM display
主轴设计在电源故障后恢复电源时不会自动打开
精确grinding head housing
Preicison spindle with ABEC-7 bearings
Power feeds on X and Y axes, elevating motor on the knee
精确X, Y axes and knee hardened and ground dovetail ways to HRC 52°
Rigid Meehanite GA-50 casting
One shot lubricator; chip pan
Mechanical Specifications:
运输尺寸：89英寸x 69英寸x 80英寸h
Weight: approx. 4,960 lbs.
Contact us for special pricing and availability
FOB Factory
