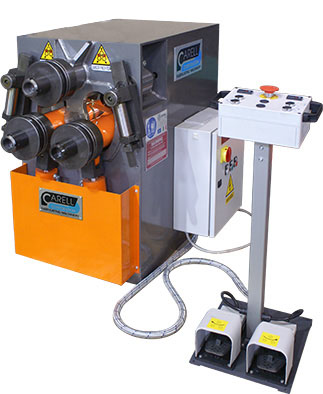

Carell 303HV 2″ Double Pinch Angle Roll
Inventory # 7830
Model: 303HV
Description:
Carell 303HV是3个驱动的卷，双初始捏合通用弯曲机，具有独立的液压调整，侧向弯曲卷和所有三个弯头的动力旋转
The versatile unit is ideal for rolling standard/special sections as well as tube and pipe in mild-structural-stainless steels, aluminum, brass, copper and other materials. Machines are furnished with a set of standard universal rolls
Specifications:
能力：
Flat Bar, Hard Way: 2 3/8″ x 3/8″, 20″ Min. Diameter
Flat Bar, Easy Way: 3″ x 3/4″, 18″ Min. Diameter
方杆:1”,12分钟。Diameter
Angle, Leg-Out: 2″ x 1/4″, 28″ Min. Diameter
Angle, Leg-In: 2″ x 3/16″, 28″ Min. Diameter
Channel, Leg-Out: 3″ x 1 3/4″, 24″ Min. Diameter
通道，腿部：2 1/2“ x 1 5/8”，30英寸分钟。直径
Solid Round: 1 3/8″, 16″ Min. Diameter
Round Pipe, Sch. 40: 1 1/2″, 20″ Min. Diameter
Round Tube: 2 3/8″ x 14 Gauge
Square Tubing: 2″ x 14 Gauge
Rolling Speed: 20 FPM
标准功能：
双LED数字显示器监视弯曲位置
Double Pinch Geometry permits pre-bending of leading and trailing ends of the profile without removal from the machine
Telescoping modular multi-component roll set specifically designed to bend standard sections including angle leg-in/out and square/rectangular tube, as well as other shapes in a variety of material types
Tri-Directional Lateral Guides with cam rollers for correcting inherent twist when rolling angle leg-in
在水平和垂直方向上运行
机械规格：
Weight: approx. 1,720 lbs.
与我们联系以获得特殊定价和可用性
FOB工厂
