Description

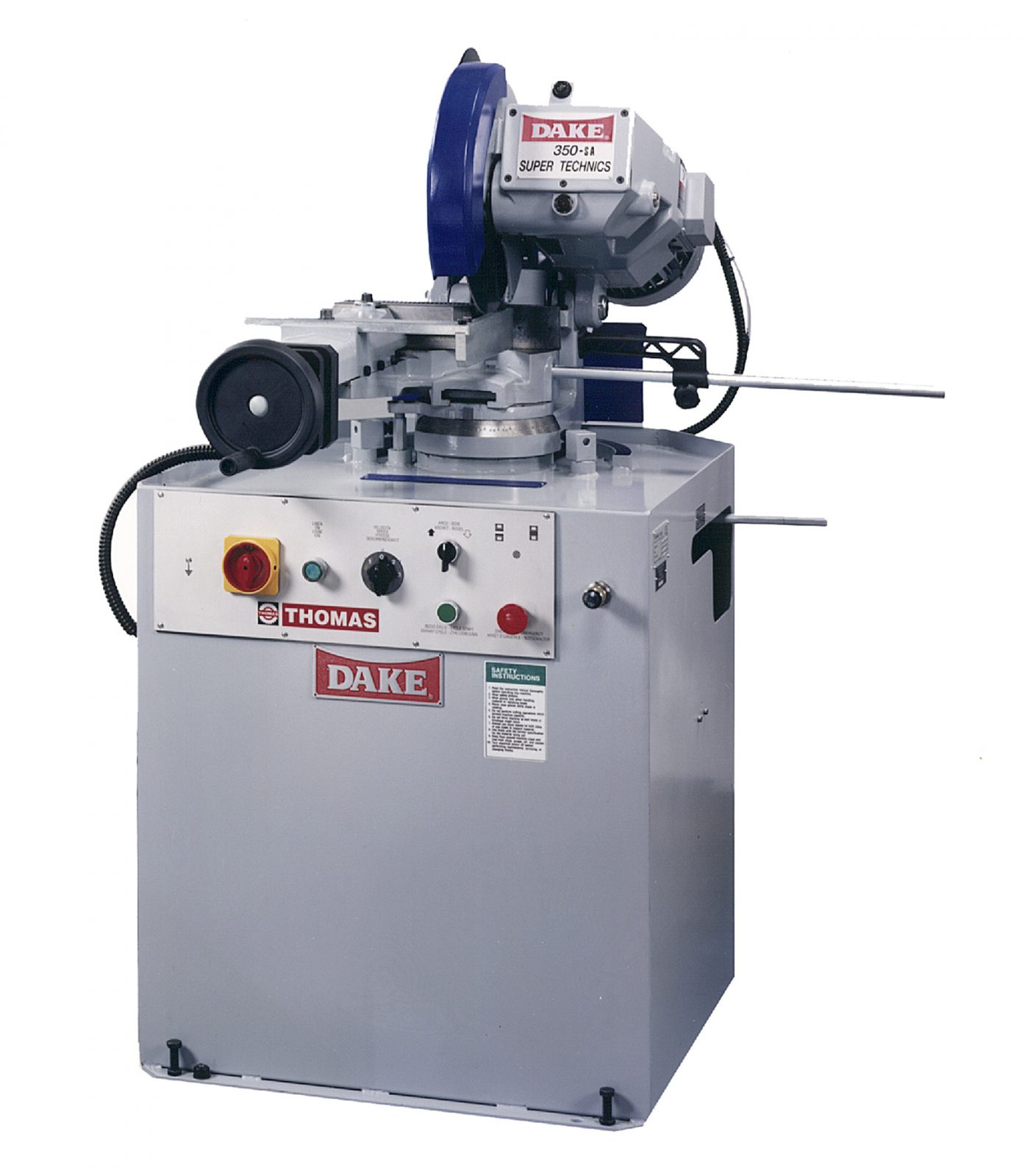

Dake 4 3/4″ Semi-Automatic Cold Saw, Technics 350SA
Inventory # 6209
Model: Technics 350SA
Specifications:
Max. Cutting Capacity:
Round:
@ 90°: 4 3/4″
@ 45°, Left: 4″
@ 45°, Right: 4″
Square:
@ 90°: 4 1/8″
@ 45°, Left: 3 3/8″
@ 45°, Right: 3 3/8″
Flat:
@ 90°: 6 1/4″ x 3 1/2″
@ 45°,左:3 3/8“x 2 3/4”
@ 45°, Right: 3 3/8″ x 2 3/4″
Max. Blade Size: 14″
Spindle Speed: 20 – 105 RPM (Variable)
Head Feed: Air Over Oil Power Feed
Vise: Pneumatic
Max. Vise Opening: 6 5/8″
Controls: CE Certified 24-Volt with Foot Start Switch
Work Height: 36 3/4″
Motor: 3.5 HP / 220vOR440v / 3ph(Please Specify Desired Voltage at Time of Order)
Standard Features:
Push button or foot-switch activation to avoid operator fatigue
Shroud enclosed head feed cylinder with sliding cams for fast cutting stroke adjustment
Additional ball bearing support of hardened and ground spindle shaft to prevent failure
Adjustable pneumatic vise with sliding gib to true up clamping under blade with 1/4 stroke
机汇ersized pedestal base to reduce vibraiton
Head rotates 45° right and 60° left of center for easy miter cutting
Removable hardened, serrated vise jaws faces
Ability to add a programmable feed system to make fully automatic with wide range of capabilities
Standard Equipment:
Blade
Coolant
Saw Blade Selector Calculator
Tools Kit for Changing Blades
Instruction and Service Manual
Adjustable Positive Stop
Mechanical Specifications:
Dimensions: 50″ x 33″ x 60″ H
Weight: approx. 890 lbs.
Contact us for special pricing and availability
FOB Factory
Optional Equipment:
440-Volt Motor: + $675.00
