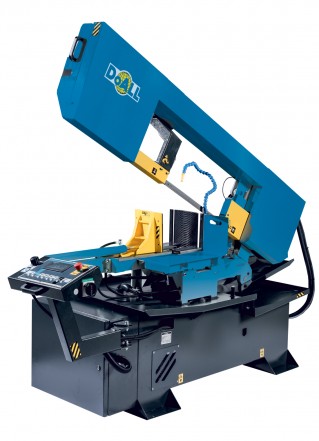

DoALL 14″ Dual-Miter Semi-Automatic Band Saw, DS-500SA
Inventory # 7711
Model: DS-500SA
Description:
The DoALL DS-500SA StructurALL semi-automatic, dual-miter metal-cutting band saw is designed for cutting material both linear and at angles. Miter angle cuts are possible up to 60° left and right. A digtial readout comes standard and makes it easy to verify exact cutting angles
也归类为卧式结构,scissor saw, the DS-500SA is ideal for machine shops, repair facilities and industrial manufacturing plants that need to occassionally cut metal solid and profile material. A large variety of optional accessories are available to customize the machine for specific sawing requirements
Specifications:
Cutting Capacity:
Round Tube: 14″
Rectangle: 14.17″ x 19.69″
Solid Round: 9 7/8″
Miter Cutting: 60° Left and 60° Right
Round @ 45°: 14.2″
Rectangle @ 45°: 15 3/4″ x 7 1/2″
Round @ 60°: 12.2″
Rectangle @ 60°: 10.6″ x 12.6″
Nesting Capacity: 0.20″ – 19.7″ x 8.7″
Material Pass Line Height: 32″
Blade Size: 188″ x 1 1/4″ x 0.042″
Blade Speed: 65 – 328 FPM
Blade Drive Motor: 4 HP
Standard Features:
Tool kit
Flood coolant
Gear box – two speed
Blade-driven hand brush
One DoALL bi-metal saw blade
Work stop directly mounted – 3.3 ft.
Complimentary DoALL cutting fluids package
Instruction and parts manuals on CD or USB data stick
Mechanical Specifications:
Dimensions: 43″ x 114″ x 56″ H
Weight: approx. 1,576 lbs.
Contact us for special pricing and availability
FOB Factory
