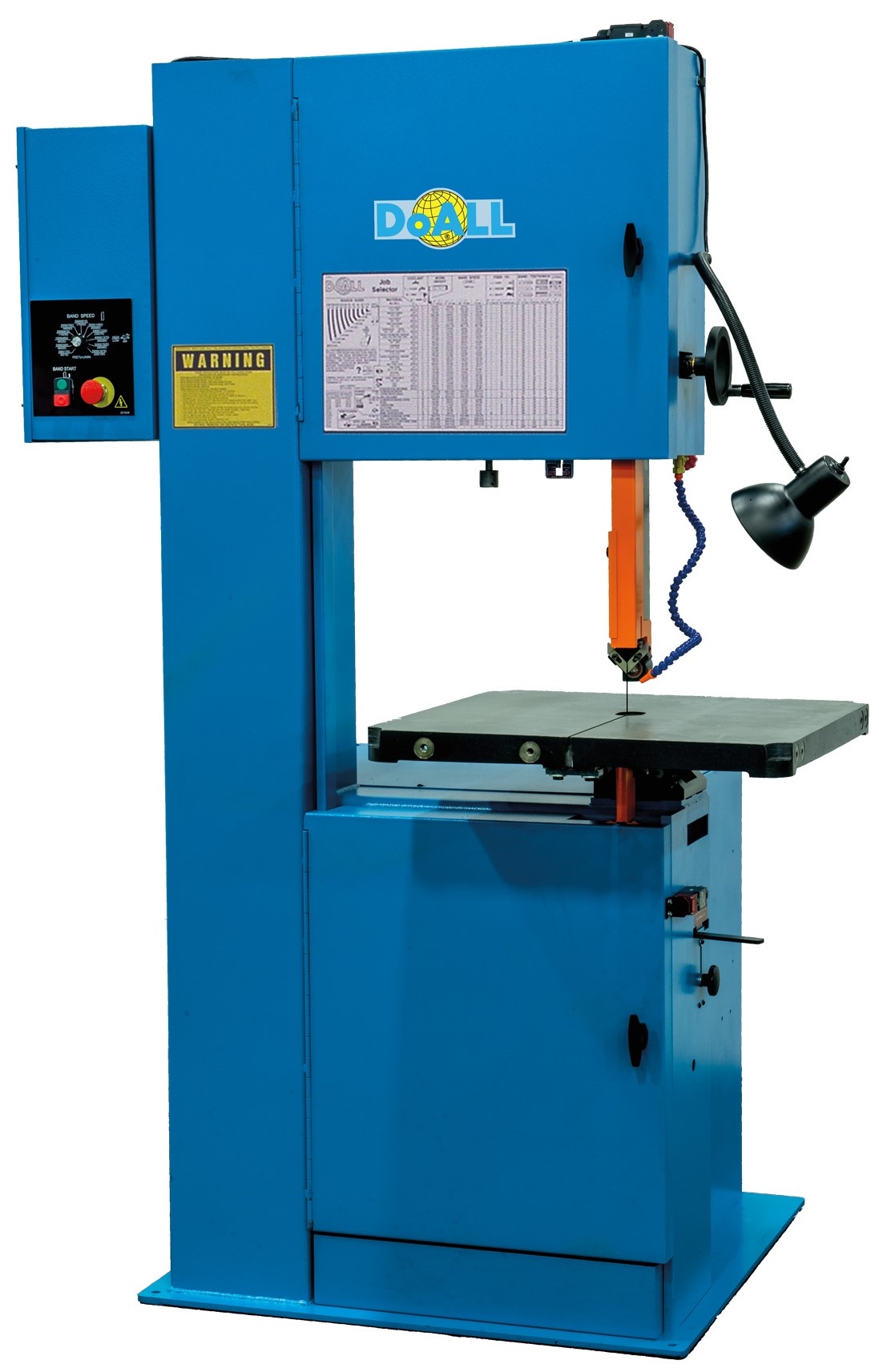

DoALL 20″ x 13″ High Speed Contour Band Saw, 2013-V5
Inventory # 7722
Model: 2013-V5
Description:
The 2013-V5 DoALL high-speed, vertical contour band saw features variable frequency AC inverter drive controls that start the motion of the band wheels slowly to reduce mechanical shock and increase drive train life, plus a dynamic braking function that rapidly stops motion when power is shut-off
The 2013-V5 upright non-ferrous saw is among the most versatile 20″ x 13″ sawing machines on the market today
Specifications:
Throat Blade to Column: 20″
Max. Work Height: 13″
Blade Speed: 550 – 5,500 FPM
Blade Size: 154″
Table (Tilts 45° R, 10° L): 26″ x 26″
Table to Floor Height: 39″
Table Capacity: 500 lbs.
Upper Wheel Adjustment: 3″
AC Drive Motor: 5 HP
Standard Equipment:
Chip pan
Job selector
Transmission oil
Band speed indicator
Band door interlocks
Band tension indicator
Wrench for saw guides
Wrench for table trunnion

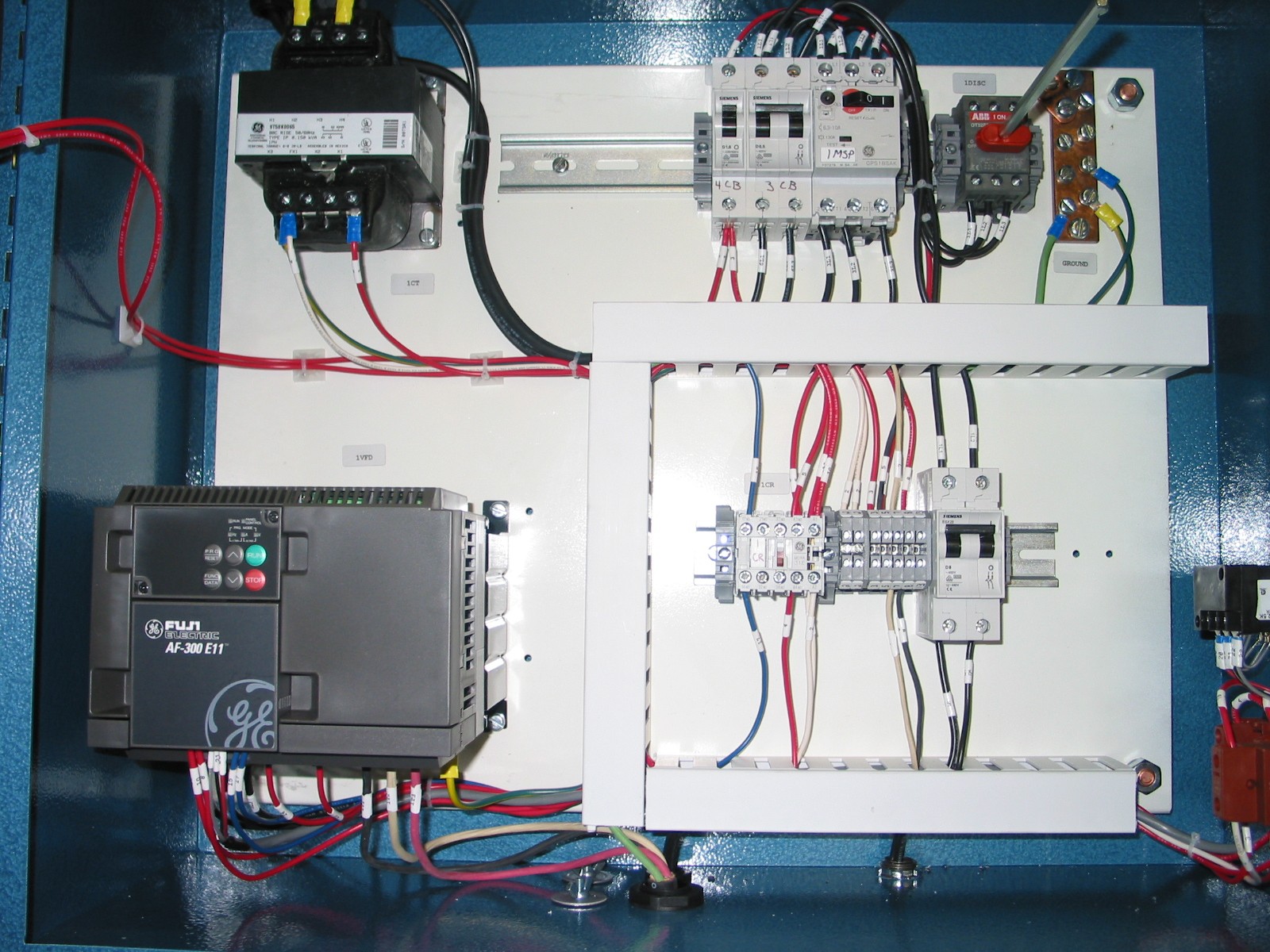

Variable frequency AC drive
One DoALL bi-metal saw blade
Aluminum wheels with crowned rubber tires
One set of steel guide inserts for bands 1/4″, 3/8″ and 1/2″
One set of high-speed, insert-type guide blocks for bands 1/8″ – 1/2″
Instruction and parts manuals on CD or USB data stick
Mechanical Specifications:
Dimensions: 53 1/2″ x 45″ x 80 1/4″ H
Weight: approx. 1,250 lbs.
Contact us for special pricing and availability
FOB Factory
