Description

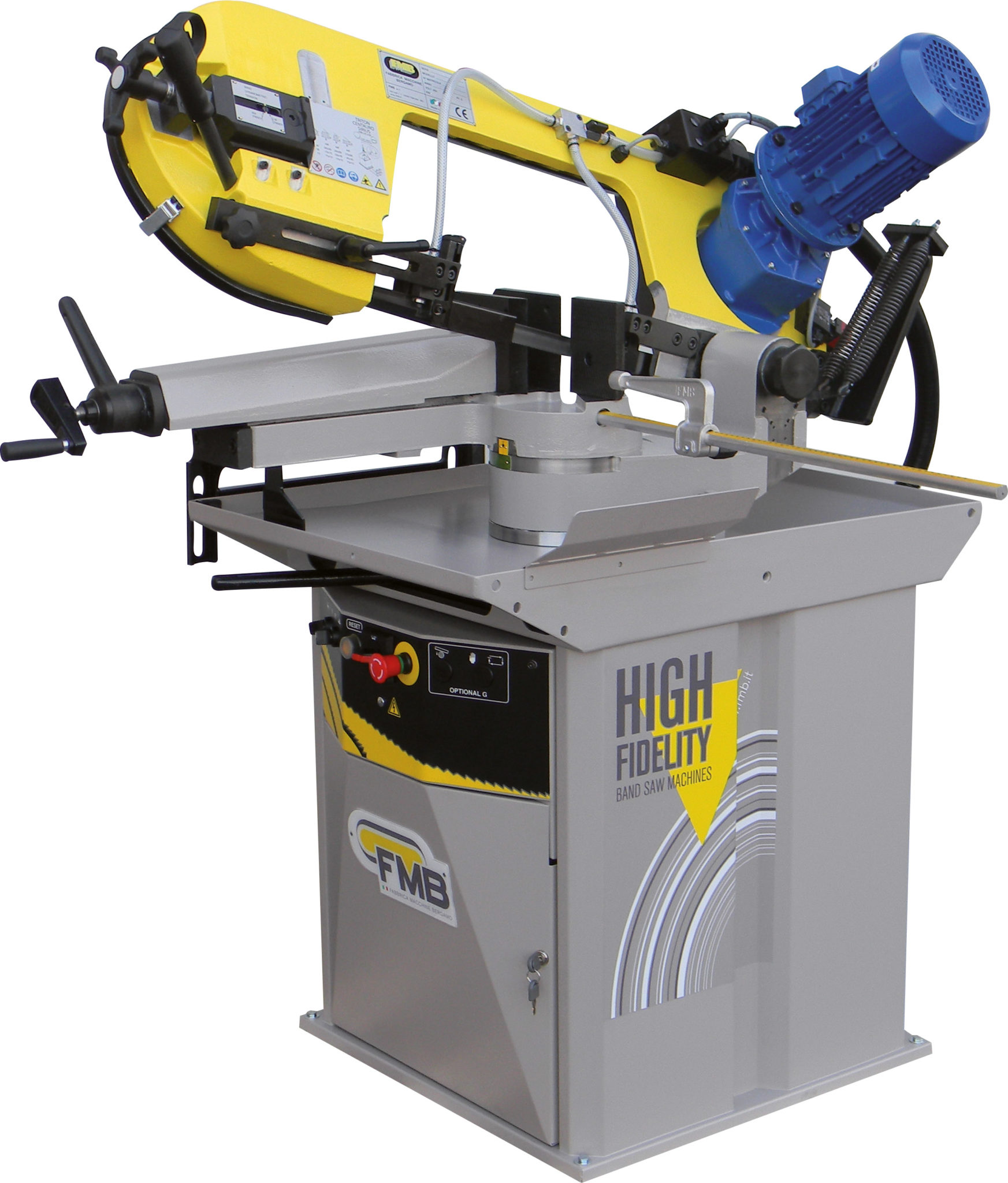

FMB Triton 9 1/2英寸下拉水平斜切带锯
Inventory # 5575
型号：Triton
Description:
The FMB Triton Pull Down Band Saw allows fast sawing and operation on tubes, profiles and small solids
规格：
Cutting Capacity:
Round:
@ 0°: 9 1/2″
@ 45°：7 1/4英寸
@ 60°：4 1/2“
Rectangle A:
@ 0°: 8 1/4″ x 11″
@ 45°：5 1/2“ x 7”
@ 60°: 4 1/3″ x 4 1/3″
Rectangle B:
@ 0°: 9 1/2″ x 10 1/4″
@ 45°: 8 3/4″ x 6 1/2″
正方形：
@ 0°:9 1/2“x 9 3/8”
@ 45°: 6 3/4″ x 6 3/4″
@ 60°: 4 1/3″ x 4 1/3″
刀片尺寸：106“ x 1” x .035英寸
刀片速度：115和230 fpm（110V/1PH是1速 - 230 fpm）
Motor: 1.5 HP / 220vOR440V / 3PHOR110v / 1ph(Please Specify Desired Voltage at Time of Order)
标准功能：
真正的直接驱动电动机/齿轮箱。螺旋齿轮箱，齿轮在碳化，硬化的合金钢中
Control panel on the front of machine for optimal ergonomics
Correct saw blade tension is clearly visible with a yellow notch
锯刀片指南可提供切割精度和刀片寿命
用手动饲料和杠杆进行固体铸铁恶习，以便快速夹紧
冷却液罐可以轻松清洁和填充
Cutting angle is readable by a graduated scale
Mechanical lips for fast head rotation at 0°, 45°, and 60°
易于访问的锁/解锁杆，用于切割
Mechanical Specifications:
Floor Space: 32″ x 55″
重量：大约700磅。
Contact us for special pricing and availability
FOB Factory
Optional Equipment:
Single Phase Motor
