Description

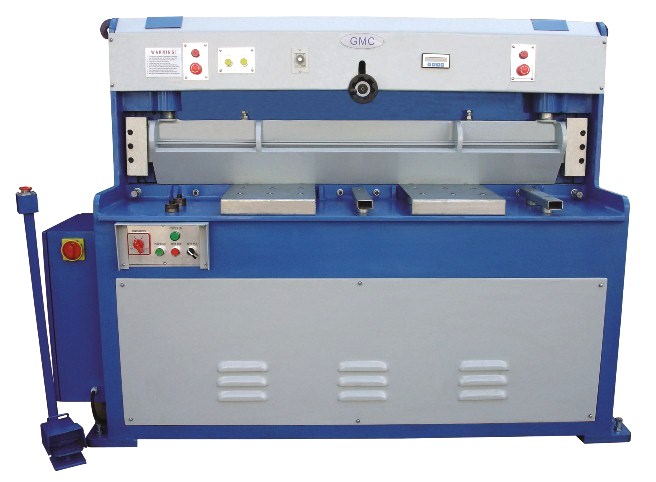

GMC 4′ x 1/4″ Hydraulic Shear, HS-0425E
Inventory # 5345
Model: HS-0425E
Made in Taiwan
Specifications:
Capacity:
Mild Steel: 4′ x 1/4″
Stainless Steel: 4′ x 10 Gauge
Blade Length: 52″
Strokes per Minute: 12 – 20
Throat Depth: 18″
Worktable Height: 34 1/2″
Front Support Arm: 24″
Back Gauge: 24″
Blade Rake Angle: 2°
Oil Tank Capacity: 15 Gallons
Main Motor: 10 HP
Standard Features:
ISO 9001 certified

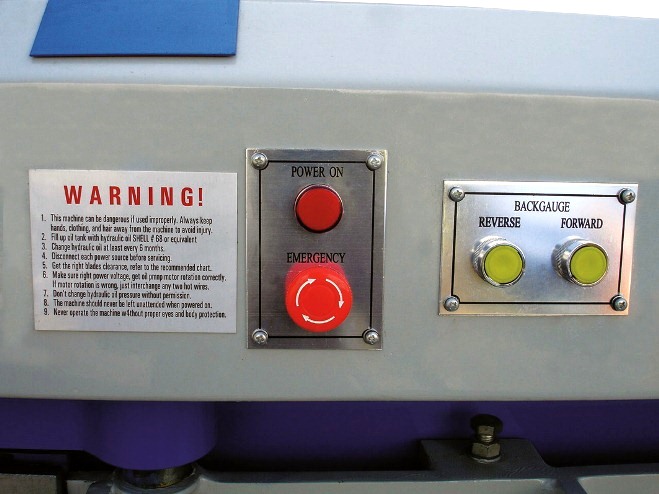

24″ German SIKO front operated power back gauge
Automatic quick change blade gap adjustment (BGA), no lever required
CE standard “OMERO” electric control system
Meet OSHA safety standard code
Shadow line for accurate straight cutting
Adjustable cutting length and stroke
Ball transfer plates on worktable for easy loading workpiece
Well balanced and sturdy all steel machine frame
German made hydraulic logic system centrally located and quiet
Hydraulic hold-downs with anti-mar neoprene
Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 4-edge indexable bottom blade
Full length viewable safety finger guard to protect operator from cutting hazard
Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
Hydraulic, electrical overload protection

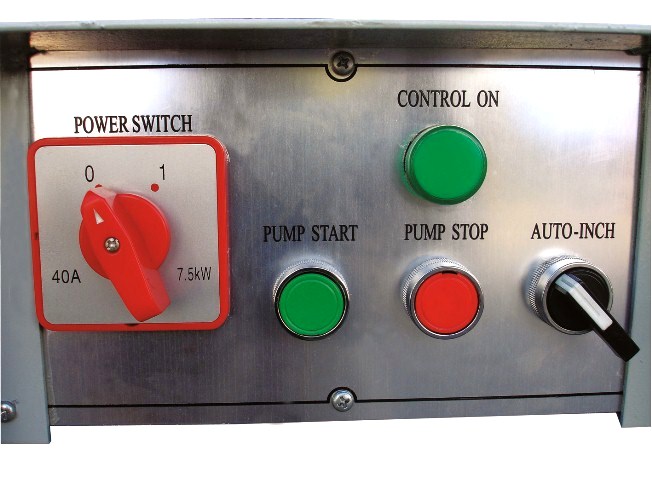

Compact operator control panel
All motors are overload protected and low voltage control system
Jog or continuous auto cycle cutting operation modes
One year industrial warranty for parts
Standard Equipment:

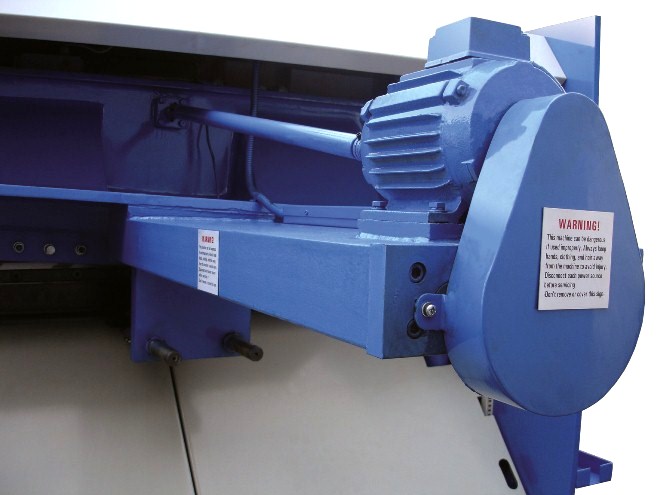

24″ German SIKO front operated power back gauge with micro adjustment
(1) 60″ squaring arm with inlaid inch/metric dual scale
Automatic quick change blade gap adjustment (BGA)
Shadow line for accurate straight cutting
Material support and drop back chuter
Upper and bottom blade set with 4-edge on bottom and 2-edge on upper
(2) 24″ front support arms
Hydraulic hold-downs with anti-mar neoprene
Full length viewable finger guard
Removable safety foot pedal
Mechanical Specifications:
Dimensions: 74″ x 86″ x 63″ H
重量: approx. 5,380 lbs.
Contact us for special pricing and availability
FOB Factory
