Description

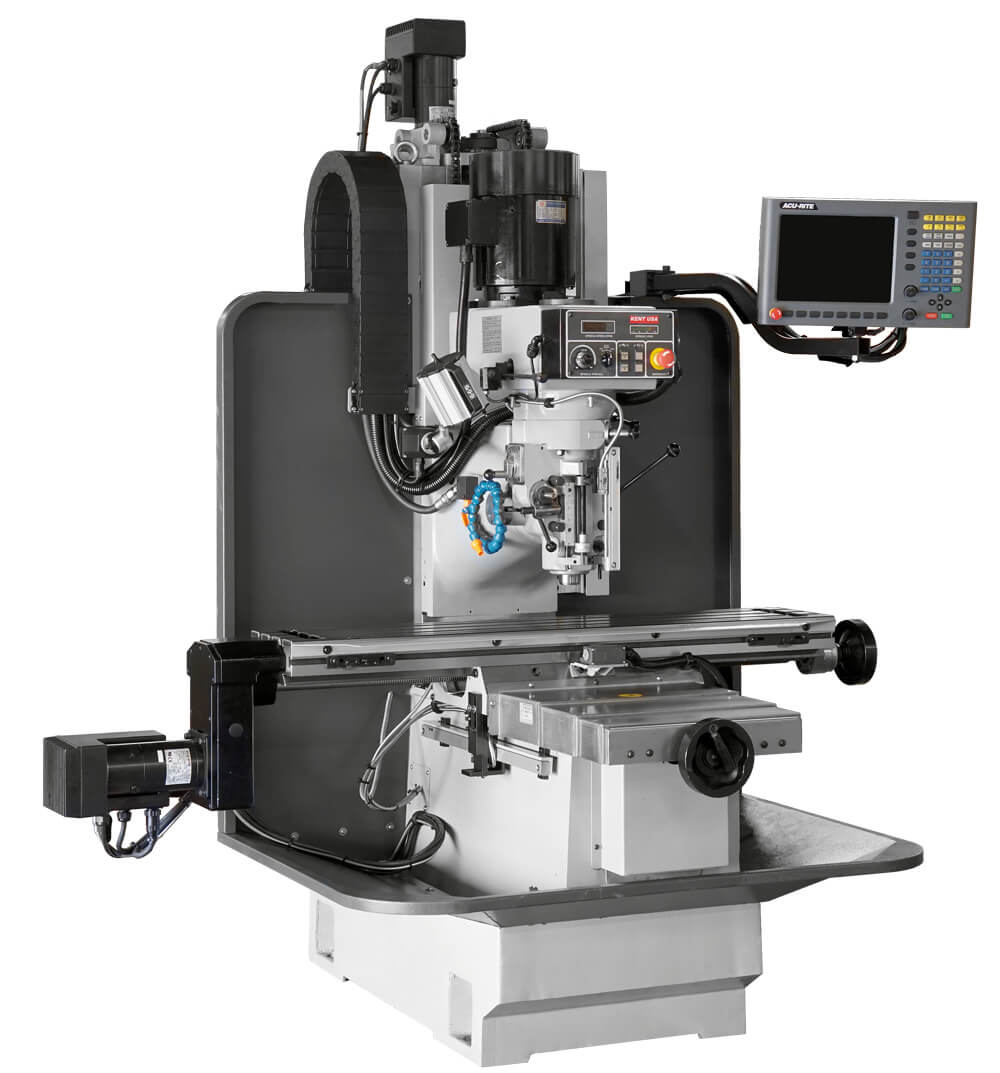

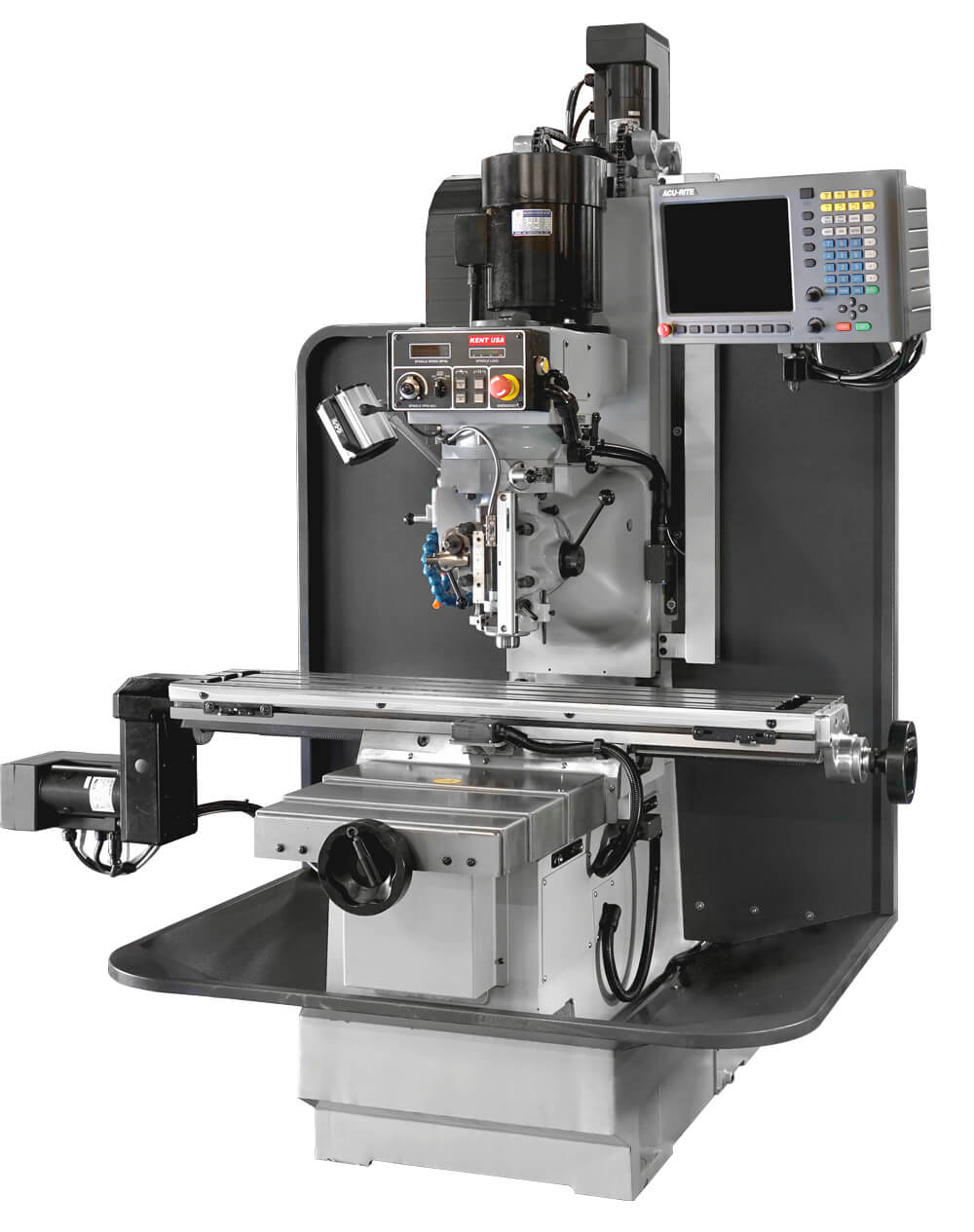

Kent 10″ x 50″ CNC Bed Mill with Acu-Rite MillPwr-G2 Control, BM-3
Inventory # 8176
Model: BM-3
Specifications:
Capacity:
Table Size: 10″ x 50″
Table Travel (X-Axis): 34″ (32″ with Control)
马鞍旅行（Y轴）：16英寸（14英寸）
膝盖旅行(z轴):24“(22”与控制)
Spindle Center to Column: 17.8″
主轴到桌子：2英寸 - 26英寸
Quill Travel: 5″
奎尔直径：3 3/8英寸
T-Slots (Number x Width): 3 x 5/8″
主轴锥度：R8 / NMTB 30
Speed Range: 80 – 4,500 RPM
Quill Power Feed：0.0017英寸 / 0.0032英寸 / 0.0054英寸
Drilling Capacity (Manual): 1″
钻孔能力（功率）：0.37英寸
Boring Capacity: 6″ Diameter
铣削能力：2 1/2英寸 /分钟。
最大限度。工作负载：1,480磅。（分散式）
Motor: 3 HP / 220v / 3ph
标准功能：
Rigid spindle/head housing with powerful 3 HP vector drive spindle motor
80 – 4,500 RPM programmable spindle provides greater range of machining capability
金属伸缩式方式盖在前鞍方式上，以增强耐用性
X-axis and Y-axis metal hand wheels for manual operation and set ups
Automatic lubrication system with metered check valves
Programmable flood coolant with splash guards and chip pan
Built-in coolant reservoir in machine base
Certified Meehanite machine casting for superior dampening and stability
Standard Accessories:
ACU-RITE MILLPWR-G2对话控制，具有12.1英寸颜色LCD
Manual/DRO, conversational, and G-code operational modes
Dual USB (front/back) ports, Ethernet port, and RS-232 port
Programmable spindle speed control and spindle speed override knob
Programmable flood coolant, splash guards and chip pan
Automatic lubrication system and work light
Standard tools and manual
2-year MillPwr-G2 system warranty
机械规格：
Shipping Dimensions: 78″ x 51″ x 80″ H
Shipping Weight: approx. 4,100 lbs.
与我们联系以获得特殊定价和可用性
FOB工厂
