Description

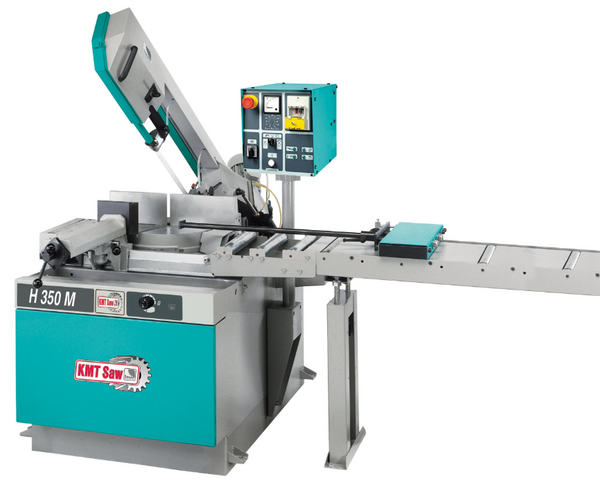

Kalamazoo Machine Tool 12” Swivel Head Mitering Manual Band Saw, H 350 M
Inventory # 4682
Model: H 350 M
Made in Italy
Description:
The H 350 M is a gravity feed auto-cut band saw capable of mitering 45° to the left and 60° to the right. The blade will turn off at the end of the cut. The solenoid will hold the saw frame where lifted. The auto-cut will ensure that each cut in feed is exactly at the same rate, eliminating the need to open and close the valve each cut
Specifications:
Capacity:
@0°:
Round: 12″
Square: 10″
Rectangle: 7 3/4″ x 13 3/4″
@45° Right:
Round: 10″
Square: 9″
Rectangle: 7 3/4″ x 9″
@60° Right:
Round: 6 3/4″
Square: 6″
Rectangle: 3 3/4″ x 6 1/2″
@45° Left:
Round: 10″
Square: 9″
Rectangle: 7 3/4″ x 9″
Vise Opening: 13 3/4″
Blade Speed: 60 – 360 FPM
Blade Size: 133″ x 1″ x 0.035″
Motor: 3 HP / 230v / 3ph
Standard Equipment:
One Bi-metal Blade
Low Voltage Control
Nylon Blade Brush
Carbide Guides with Rollers
Totally Enclosed Worm Gear Transmission
完整的冷却剂系统
Full Blade Guarding
Operators Manual Parts List/Schematics
Tool Kit
Mechanical Specifications:
Dimensions: 72″ x 60″ x 37″ H(Workheight)
Weight: approx. 1,500 lbs.
Contact us for special pricing and availability
FOB Factory
