Description

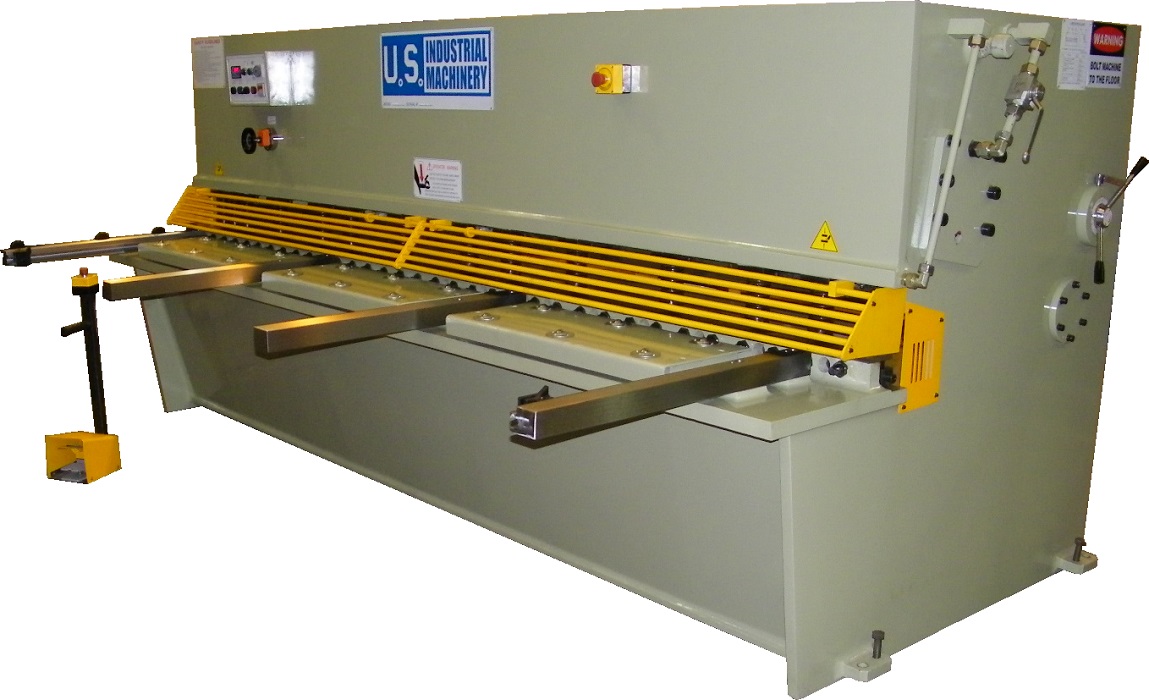

U.S. Industrial 13′ x 1/4″ Hdyraulic Shear, US1325
Inventory # 6530
Model: US1325
Specifications:
Sheet Size: 157″
Shearing Capacity: 1/4″ Mild Steel @ 65,000 PSI
Shear Angle: 1° 30′
No Load Strokes: 10
Throat Depth: 5 1/2″
Adjustment Range of Back Gauge: 3/4″ – 36″
Hydraulic Oil Capacity: 66 Gallons
Motor: 15 HP / 230v, 460v / 3ph
Standard Features:
Squaring arm, 39 1/2″ from blade to end
High carbon, high chrome shear blades
Ball transfers on each table segment
Manual quick change blade gap adjustment
Stroke counter
Front-controlled power back gauge
Blade gaurd, micro switch protected
Hydraulic, electrical overload protection
Automatic swing-up on back gauge
Six bolts on table segments
Hold-downs faced with anti-mar neoprene
Swing beam design
Pressure sensing hold downs
Electric stroke adjustment
Operator control console
Shadow lighting
Low noise gear pump
Support arms
Material drop support chute
Mechanical Specifications:
Dimensions: 182″ x 66″ x 66″ H
Weight: approx. 22,046 lbs.
Contact us for special pricing and availability
FOB Factory
Optional Equipment:
6′ Squaring Arm
8′ Squaring Arm
10′ Squaring Arm
Please Note: Machines ship drained of all hydraulic fluid. End user is responsible for purchasing and filling the machine with Exxon Mobil NUTO-H46 hydraulic fluid, or equal
