Description

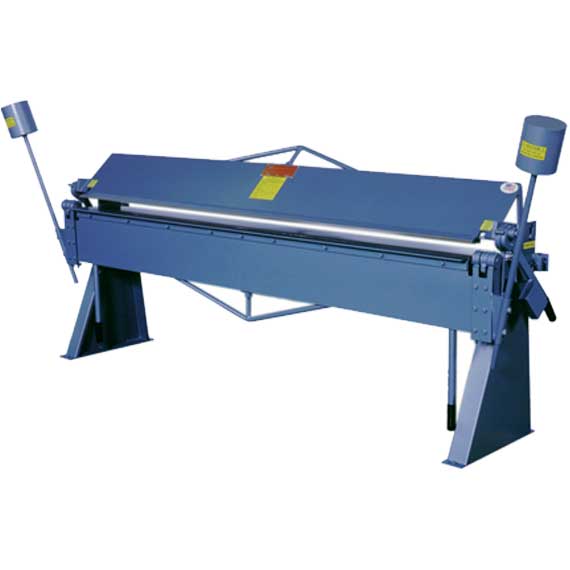

Roper Whitney Connecticut 10′ x 18 Gauge Manual Hand Brake, 1018
Inventory # 7900
Model: 1018
Made in USA
Description:
Connecticut floor mounted manual bending brakes are precision machines designed for accurate bending with rated capacities. All Connecticut bending brakes have positive clamping pressure adjustment, apron stop rods for repeat bends, long handles for extra leverage, work support angle bar for full capacity 1″ minimum flange, improved leg design for lighter weight, all steel construction — no castings, heavy tie rods for minimum deflection, removable bending bar and angle, adjustable apron hinges and a positive rear material gauge adjustment
Connecticut Series hand brakes are an economically-priced solution for your bending needs and will provide years of trouble-free service. This machine has a bending capacity of 18 gauge up to 10′ long
Specifications:
Bending Length: 121″
Mild Steel Capacity:
Bending Bar and Angle in place: 18 Gauge
Bending Angle Removed: 22 Gauge
Bending Bar and Angle Removed: 26 Gauge
Min. Reverse Bend: 1/4″
Max. Lift of Beam: 2 1/4″
Front to Rear Adjustment: 1 1/8″
Mechanical Specifications:
Weight: approx. 2,200 lbs.
Contact us for special pricing and availability
FOB Factory
