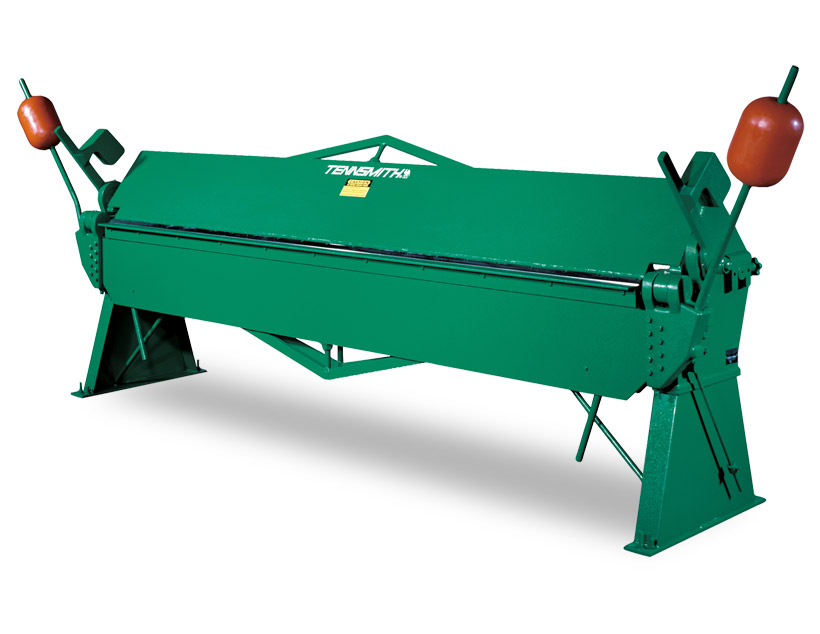

Tennsmith 10′ x 16 Gauge Straight Bending Hand Brake, HB121-16
Inventory # 5113
Model: HB121-16
Made in USA
Description:
All-steel welded construction. Equipped with thrust bearings, the upper leaf adjustment screws permit quick, accurate alignment for different material thicknesses or radii
Specifications:
Capacity, Mild Steel: 16 Gauge
Bending Length: 121″
Max. Lift of Beam: 2 1/4″
Front-to-Rear Beam Adjustment: 1/2″
Min. Reverse Bend: 1/4″
Min. Flange in Capacity Material: 1″
Standard Features:
Fully adjustable counter balances to facilitate the bending process
Replaceable nose bar and apron inserts
Removable apron angle and insert permit 1/4″ reverse bends in lighter material
Bored in line to ensure perfect alignment, the pivot points are fitted with oil impregnated bearings
铰链销是high-tensile, alloy steel
Ductile steel clamp handles, heavy yokes, grease fittings and an apron stop rod
Leveling screws and lock nuts on the pedestals
Jack screws and tensioner bolts on the apron
Truss rods on the apron, base and upper beam
Mechanical Specifications:
Dimensions: 161″ x 53″ x 59 1/2″ H(with Counterweights in Place)
Shipping Weight: approx. 2,875 lbs.
Contact us for special pricing and availability
FOB Factory
