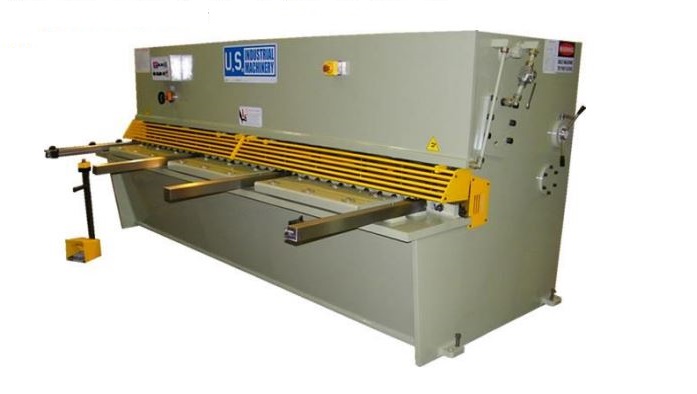

U.S. Industrial 10′ x 1/4″ Hydraulic Shear, US1025
Inventory # 8047
Model: US1025
Specifications:
Sheet Size: 126″
Shearing Capacity: 1/4″ Mild Steel @ 65,000 PSI
Shear Angle: 1° 30′
No Load Strokes: 14
Throat Depth: 4.7″
Adjustment Range of Back Gauge: 3/4″ – 36″
Hydraulic Oil Capacity: 71 Gallons
Motor: 15 HP / 230v, 460v / 3ph
Standard Features:
Squaring arm, 39 1/2″ from blade to end
High carbon, high chrome shear blades
Ball transfers on each table segment
Manual quick change blade gap adjustment
Stroke counter
Front-controlled power back gauge
Blade guard, micro switch protected
Hydraulic, electrical overload protection
Automatic swing-up on back gauge
Three bolts on table segments
Hold-downs faced with anti-mar neoprene
Swing beam design
Pressure sensing hold downs
Electric stroke adjustment
Operator control console
Shadow lighting
Low noise gear pump
Support arms
Material drop support chute
Mechanical Specifications:
Dimensions: 157″ x 63″ x 63″ H
Weight: approx. 15,550 lbs.
Contact us for availability and special pricing
FOB Factory
Optional Equipment:
6′ Squaring Arm
8′ Squaring Arm
10′ Squaring Arm
Please Note: Machines ship drained of all hydraulic fluid. End user is responsible for purchasing and filling the machine with Exxon Mobil NUTO-H46 hydraulic fluid, or equal
